Availability: | |
---|---|
Quantity: | |
Upper Clip
Brass
Brass
8mm(5/6"),10mm(3/8") or 12mm(1/2")
Contact with Supplier
Offer 0.5% Free Spare Part
Base information:

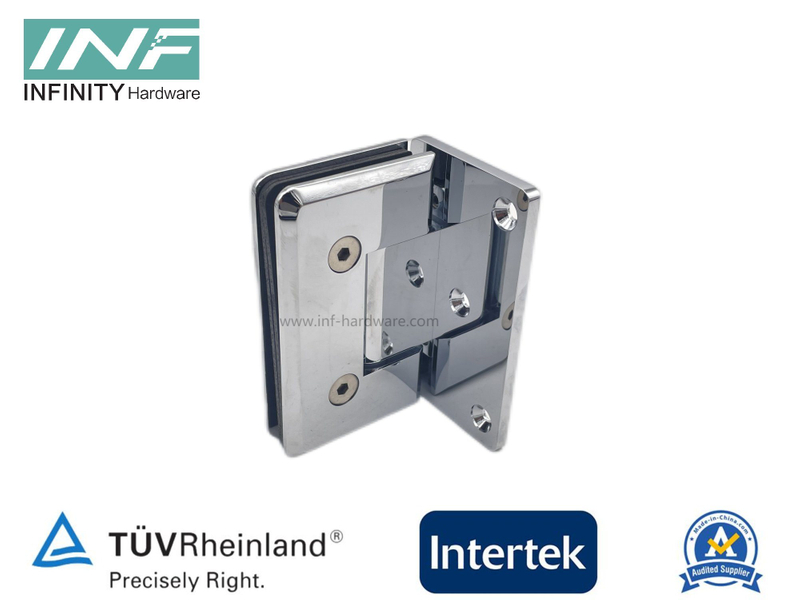

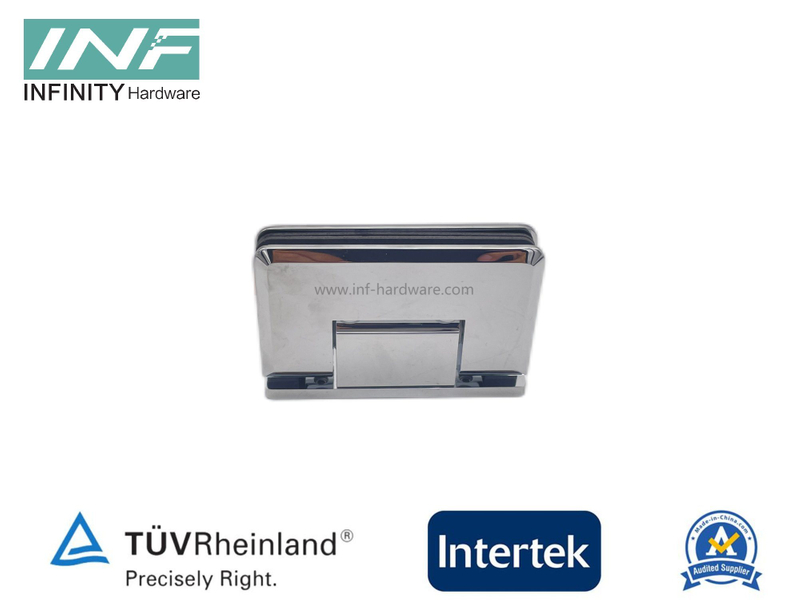

Glass Fitting Heavy Duty bevel edge Glass to wall with offset wall mount plate Door Shower Hinge with 85 and 90 Degree Reversible Pivot Pin and off-Angle Adjustable Pivot Pin Are Available
Height: 3-15/16"(100mm)
Width: 2-1/4"(57mm)
Glass thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Material: Brass
Finished: Brushed; poilsihed; PVD; Matte black; Oil rubber bronze; stain nickel; polished nickle; Anit brass etc….
STANDARD REVERSIBLE PIVOT PIN: Each Infinity Heavy Duty Shower Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Infinity Heavy Duty Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM ADJUSTABLE PIVOT PIN: Custom Adjustable Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges: with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges: with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 39" (990 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to Any Angle Up to 90 Degrees without Having to Take Door Down
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required

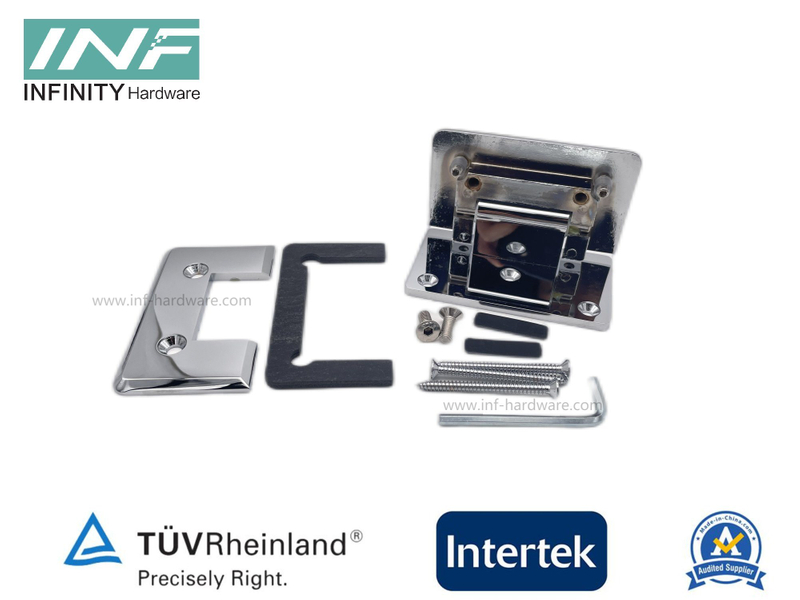

Includes: Gaskets, Screws, and Glass Fabrication Dimensions.
NOTE: Door Glass Width May Require Alteration From Standard Clearance Deductions When Adjusting Angles.
Applications:
Mainly used in the shower cubical; shower enclosure; shower room, bathroom frameless glass door.
Also could used in Hotel, Villa, Office building, Hospital, Shopping mall, Entertainment building, School, Gymnasium, Outdoor etc.
Infinity hardware factory located in the famous glass hardware city -- Jiangmen.
We are manufacturing and providing the high quality; practicality and security of tempered glass fitting more than 15 years.
Such as Tempered Glass Door Fittings, Shower Door Hinges, Glass Clamps, Handles & Knobs, PVC Seals & Wipes and Reinforcement Bars for Shower Screen,Door Rails, Hand Rails, Sliding Door System, Spider Fitting...etc.
We owned the strong technical team and experience sales teams.
We could offer the multi choice and unique glass system solution to the customer.
We are doing a lot of OEM products for a lot famous brand in the world and with long time cooperation relationship...
If you are looking for high quality products, INF is your best choice.
In the field of architectural fittings for glass doors, high quality and total design flexibility are essential for ease of installation, safety and functionality.
INF will be happy to help your special design requirements, for any doubts, please contact us for any technical assistance on parts and services.
Welcome to visit our factory! We hope to be your best partner!!
