Top /Bottom Pivot Glass Door Shower Hinge 360° Open/Close and Adjustable Movable Header Function

Availability:
Quantity:
Top /Bottom Pivot Glass Door Shower Hinge 360° Open/Close and Adjustable Movable Header Function
Top /Bottom Pivot Glass Door Shower Hinge 360° Open/Close and Adjustable Movable Header Function
Top /Bottom Pivot Glass Door Shower Hinge 360° Open/Close and Adjustable Movable Header Function
Top /Bottom Pivot Glass Door Shower Hinge 360° Open/Close and Adjustable Movable Header Function
Top /Bottom Pivot Glass Door Shower Hinge 360° Open/Close and Adjustable Movable Header Function
Top /Bottom Pivot Glass Door Shower Hinge 360° Open/Close and Adjustable Movable Header Function
  • Brass

  • 180°Hinge

  • Nickel Plated

  • Contact with Supplier

  • Offer 0.5% Free Spare Part

  • Poilsihed; PVD; Matte Black; Oil Rubber Bronze; St

Top /Bottom Pivot Glass Door Shower Hinge 360° Open/Close and Adjustable Movable Header Function

Shower Door HingesShower Door HingesGlass Door Hingeframeless hinged shower doorhinged shower doorShower Hinge
Base information:

Top /Bottom Pivot glass door shower hinge 360°open/Close and adjustable movable header function


Size:55*90mm
Height: 90mm
Width: 55mm
Glass thickness: 8 mm to 12 mm Tempered Safety Glass
Material: Brass and stainless steel
Finished: Brushed; poilsihed; PVD; Matte black; Oil rubber bronze; stain nickel; polished nickle; Anit brass etc….



Using two hinges: with 8 to 12 mm the hinge will hold up to 80 lbs. (37 kg) with a maximum door width of 36" (914 mm).

Using three hinges: with 8 to 12 mm the hinge will hold up to 121 lbs. (55 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 8-12mm Tempered Safety Glass
Special Feature: Adjustable to Any Angle Up to 90 Degrees without Having to Take Door Down
Construction: Solid Brass and stainless steel
Hinge Swings: 90 degree In and 90 degree Out (at factory set position).
Cut-Out Required

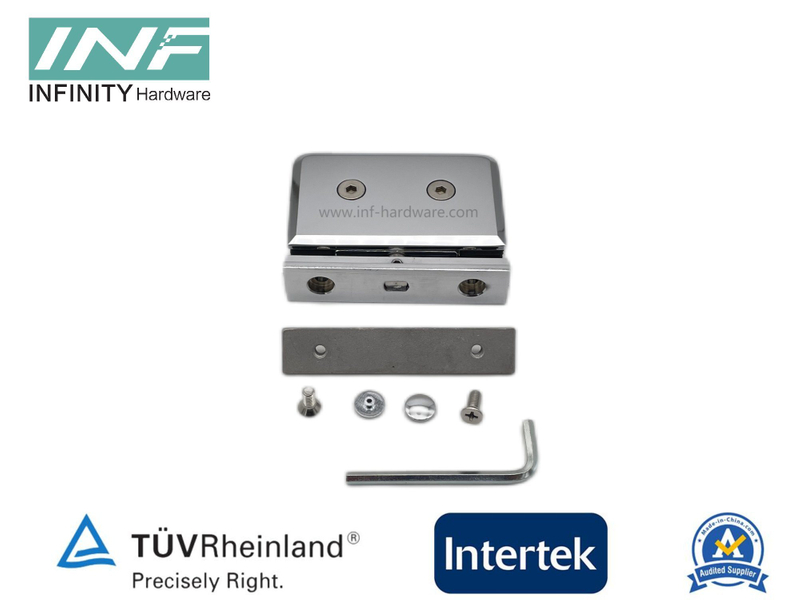

Includes: Gaskets, Screws, and Glass Fabrication Dimensions.


NOTE: Door Glass Width May Require Alteration From Standard Clearance Deductions When Adjusting Angles.


Applications:

Mainly used in the shower cubical; shower enclosure; shower room, bathroom frameless glass door.
Also could used in Hotel, Villa, Office building, Hospital, Shopping mall, Entertainment building, School, Gymnasium, Outdoor etc.

Top /Bottom Pivot Glass Door Shower Hinge 360° Open/Close and Adjustable Movable Header Function
Infinity hardware factory located in the famous glass hardware city -- Jiangmen.
We are manufacturing and providing the high quality; practicality and security of tempered glass fitting more than 15 years.
Such as Tempered Glass Door Fittings, Shower Door Hinges, Glass Clamps, Handles & Knobs, PVC Seals & Wipes and Reinforcement Bars for Shower Screen,Door Rails, Hand Rails, Sliding Door System, Spider Fitting...etc.

We owned the strong technical team and experience sales teams.
We could offer the multi choice and unique glass system solution to the customer.
We are doing a lot of OEM products for a lot famous brand in the world and with long time cooperation relationship...

If you are looking for high quality products, INF is your best choice.
In the field of architectural fittings for glass doors, high quality and total design flexibility are essential for ease of installation, safety and functionality.

INF will be happy to help your special design requirements, for any doubts, please contact us for any technical assistance on parts and services.

Welcome to visit our factory! We hope to be your best partner!!



Top /Bottom Pivot Glass Door Shower Hinge 360° Open/Close and Adjustable Movable Header Function

Q:Are you trading company or manufacturer?
A:
We are a direct manufacturer.


Q:Do you inspect the finished products?
A:Of course,the finished products are 100% inspected by our QC department before shipping.

Q:What are your payment terms?
A: T/T payment is our normal payment term. For big orders, L/C payment is accepted.

Q:How long is your delivery time?
A:It deponds on your order quantity.Usually 15-45 days for different products and quantities.
