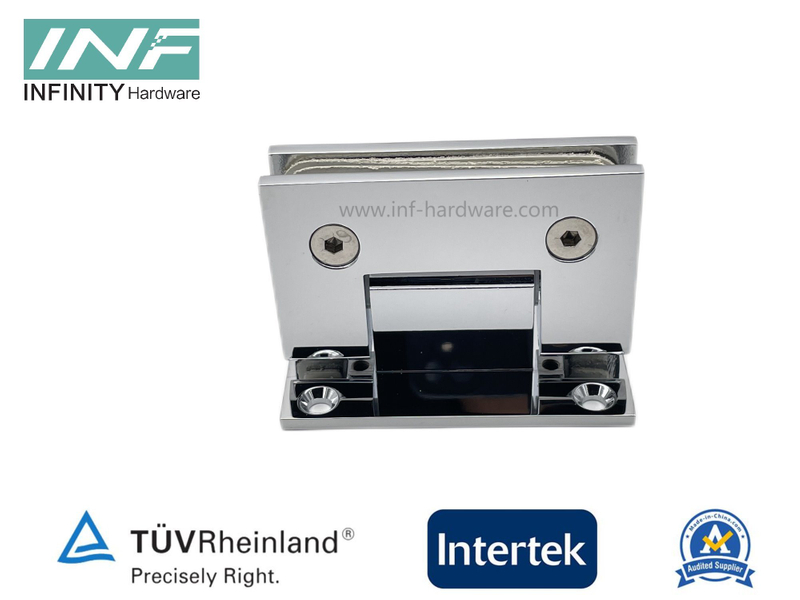

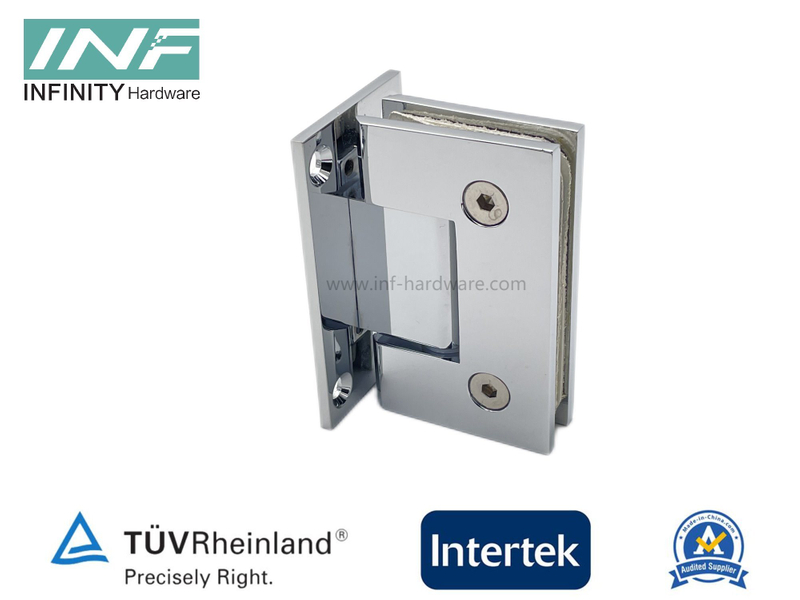

Brass Pol. Chrome Glass to Wall Shower Hinge for Glass Fitting

  • Shower Hinge

  • Brass

  • Brass

  • 8-12mm

  • Chrome

  • 3 Years

Brass Pol. Chrome Glass to Wall Shower Hinge for Glass Fitting

Base information:
Glass fittingglass to wall Shower hinge with 2 kinds of glass cut out and with 85° & 90°pin and adjustable function

Height: 90mm
Width: 55mm
Max Door Weight: Using 2 hinges for 37 Kgs ( 80LBS )

Using 3 hinges for 55 Kgs ( 121LBS )
Max Door Width: Using 2 hinges for 800 mm (31")

Using 2 hinges for 900 mm (35")
Glass thickness: 8 mm to 12 mm Tempered Safety Glass
Material: Brass

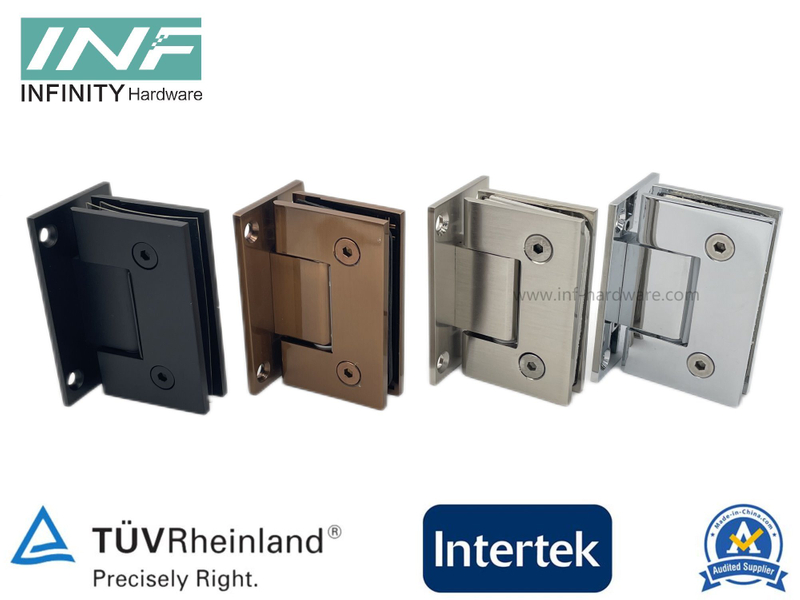

Finished: Brushed



Matte black

Oil rubber bronze

stain nickel

polished nickle

Anit brass etc

shower door hingesGlass FittingDoor Hinge

STANDARD REVERSIBLE PIVOT PIN: Each Infinity Shower Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Infinity Shower Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM ADJUSTABLE PIVOT PIN: Custom Adjustable Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges: with 8 to 12 mm the hinge will hold up to 80 lbs. (37 kg) with a maximum door width of 36" (914 mm).

Using three hinges: with 8 to 12 mm the hinge will hold up to 121 lbs. (55 kg) with a maximum door width of 36" (914 mm).

Glass Thickness: 8-12mm Tempered Safety Glass
Special Feature: Adjustable to Any Angle Up to 90 Degrees without Having to Take Door Down
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions.

NOTE: Door Glass Width May Require Alteration From Standard Clearance Deductions When Adjusting Angles.


Mainly used in the shower cubical; shower enclosure; shower room, bathroom frameless glass door.
Also could used in Hotel, Villa, Office building, Hospital, Shopping mall, Entertainment building, School, Gymnasium, Outdoor etc.

Brass Pol. Chrome Glass to Wall Shower Hinge for Glass Fitting
Infinity hardware factory located in the famous glass hardware city -- Jiangmen.
We are manufacturing and providing the high quality; practicality and security of tempered glass fitting more than 15 years.
Such as Tempered Glass Door Fittings, Shower Door Hinges, Glass Clamps, Handles & Knobs, PVC Seals & Wipes and Reinforcement Bars for Shower Screen,Door Rails, Hand Rails, Sliding Door System, Spider Fitting...etc.

We owned the strong technical team and experience sales teams.
We could offer the multi choice and unique glass system solution to the customer.
We are doing a lot of OEM products for a lot famous brand in the world and with long time cooperation relationship...

If you are looking for high quality products, INF is your best choice.
In the field of architectural fittings for glass doors, high quality and total design flexibility are essential for ease of installation, safety and functionality.

INF will be happy to help your special design requirements, for any doubts, please contact us for any technical assistance on parts and services.

Welcome to visit our factory! We hope to be your best partner!!

Brass Pol. Chrome Glass to Wall Shower Hinge for Glass Fitting

Q:Are you trading company or manufacturer?
We are a direct manufacturer.

Q:Do you inspect the finished products?
A:Of course,the finished products are 100% inspected by our QC department before shipping.

Q:What are your payment terms?
A: T/T payment is our normal payment term. For big orders, L/C payment is accepted.

Q:How long is your delivery time?
A:It deponds on your order quantity.Usually 15-45 days for different products and quantities.
