Upper Clip
Brass
Brass
8mm(5/6"),10mm(3/8") or 12mm(1/2")
Contact with Supplier
Offer 0.5% Free Spare Part
Base information:

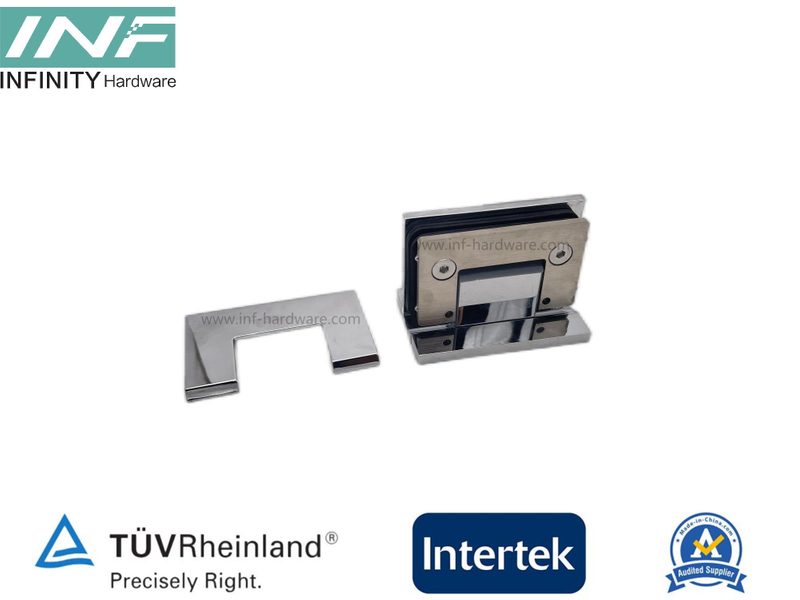

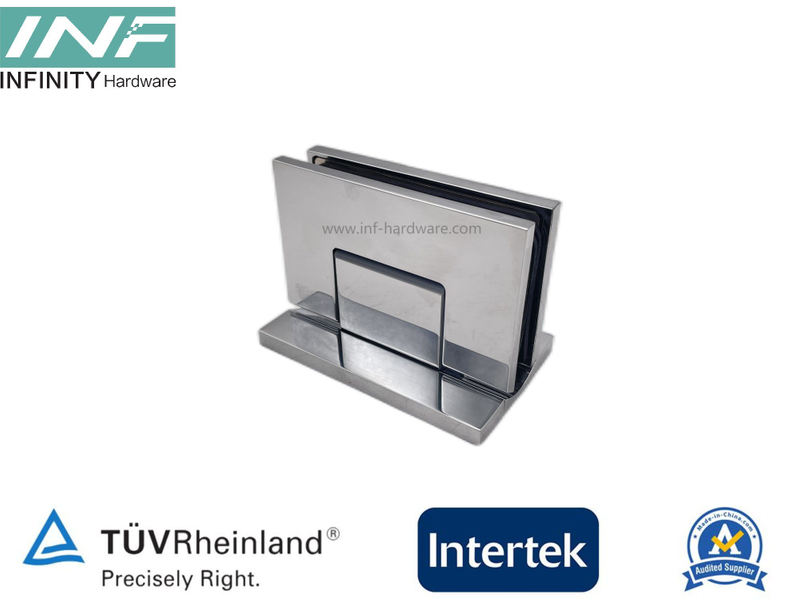

Glass to wall full plate square corner glass door shower hinge with adjustable pin function and with cover all the screw unvisiable chrome finished
Size: 57*91mm
Height: 91mm
Width: 57mm
Glass thickness: 8 mm to 12 mm Tempered Safety Glass
Material: Brass and stainless steel
Finished: Brushed; poilsihed; PVD; Matte black; Oil rubber bronze; stain nickel; polished nickle; Anit brass etc….
Using two hinges: with 8 to 12 mm the hinge will hold up to 80 lbs. (37 kg) with a maximum door width of 36" (914 mm).
Using three hinges: with 8 to 12 mm the hinge will hold up to 121 lbs. (55 kg) with a maximum door width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 8-12mm Tempered Safety Glass
Special Feature: Adjustable to Any Angle Up to 90 Degrees without Having to Take Door Down
Construction: Solid Brass and stainless steel
Hinge Swings: 90 degree In and 90 degree Out (at factory set position).
Cut-Out Required

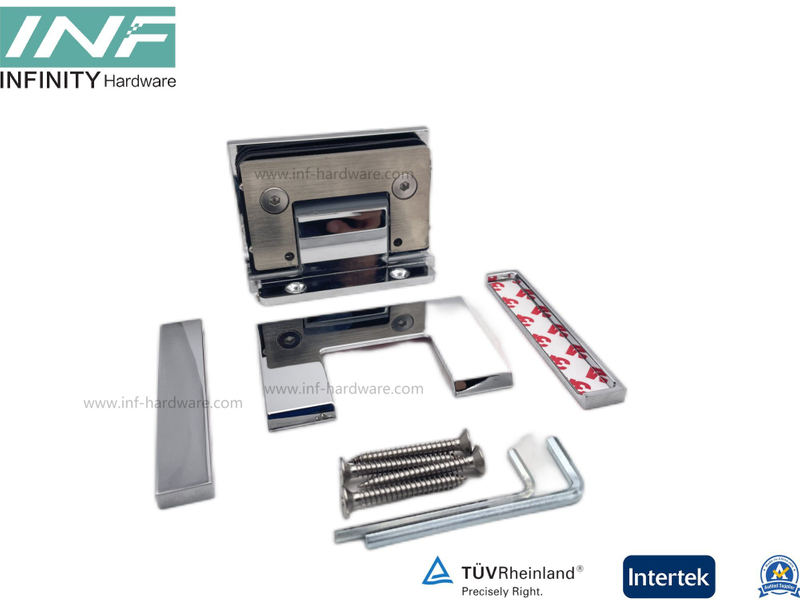

Includes: Gaskets, Screws, and Glass Fabrication Dimensions.
NOTE: Door Glass Width May Require Alteration From Standard Clearance Deductions When Adjusting Angles.
Applications:
Mainly used in the shower cubical; shower enclosure; shower room, bathroom frameless glass door.
Also could used in Hotel, Villa, Office building, Hospital, Shopping mall, Entertainment building, School, Gymnasium, Outdoor etc.
Infinity hardware factory located in the famous glass hardware city -- Jiangmen.
We are manufacturing and providing the high quality; practicality and security of tempered glass fitting more than 15 years.
Such as Tempered Glass Door Fittings, Shower Door Hinges, Glass Clamps, Handles & Knobs, PVC Seals & Wipes and Reinforcement Bars for Shower Screen,Door Rails, Hand Rails, Sliding Door System, Spider Fitting...etc.
We owned the strong technical team and experience sales teams.
We could offer the multi choice and unique glass system solution to the customer.
We are doing a lot of OEM products for a lot famous brand in the world and with long time cooperation relationship...
If you are looking for high quality products, INF is your best choice.
In the field of architectural fittings for glass doors, high quality and total design flexibility are essential for ease of installation, safety and functionality.
INF will be happy to help your special design requirements, for any doubts, please contact us for any technical assistance on parts and services.
Welcome to visit our factory! We hope to be your best partner!!
